M3TEq-U
Miniature Multi-Mode Mechanical Testing Equipment — Uniaxial
5 kN Capacity
20 mm Stroke
50× Magnification
Dual Control Modes
Compatible with:
Optical Microscope XRD Raman DICTechnical Specifications
| Load Capacity | 5 kN |
| Displacement Stroke | 20 mm |
| Load Cell Accuracy | Class 0.2 with integrated displacement sensor |
| Control Modes | Load controlled & Crosshead displacement control |
| Crosshead Speed Range | 10−4 mm/s to 10−1 mm/s |
| Testing Modes | Uniaxial tension, Compression, 3-point bending, 4-point bending |
| Integrations | Optical Microscope, XRD, Raman Spectroscopy, DIC |
Full datasheet available on request. Get the PDF or talk to our team directly.
VEDIC
2D Digital Image Correlation System for Full-Field Strain Measurement
2.3 Mpx CMOS Sensor
166 Hz Frame Rate
5 µm Resolution
In-House Software
Can be coupled with:
M3TEq-U Tensile Machines Fatigue RigsTechnical Specifications
| Number of Cameras | 1 |
| Interface | USB3 Vision |
| Sensor | 2.3 Mpx (1920 × 1200 px), CMOS |
| Frame Rate | 166 Hz |
| Std. Lens Focal Length | 25 mm |
| Camera Setup Configuration | Adjustable |
| Std. Field-of-View (FoV) | 200 mm (H) × 125 mm (V) |
| Std. Distance-to-Object | 470 mm |
| Measurement Performance | |
| Std. Spatial Resolution | 105 µm/px |
| Std. In-Plane Resolution | 5 µm |
| Std. Out-of-Plane Resolution | 10 µm – 50 µm |
| Strain Resolution | 50 µstrain |

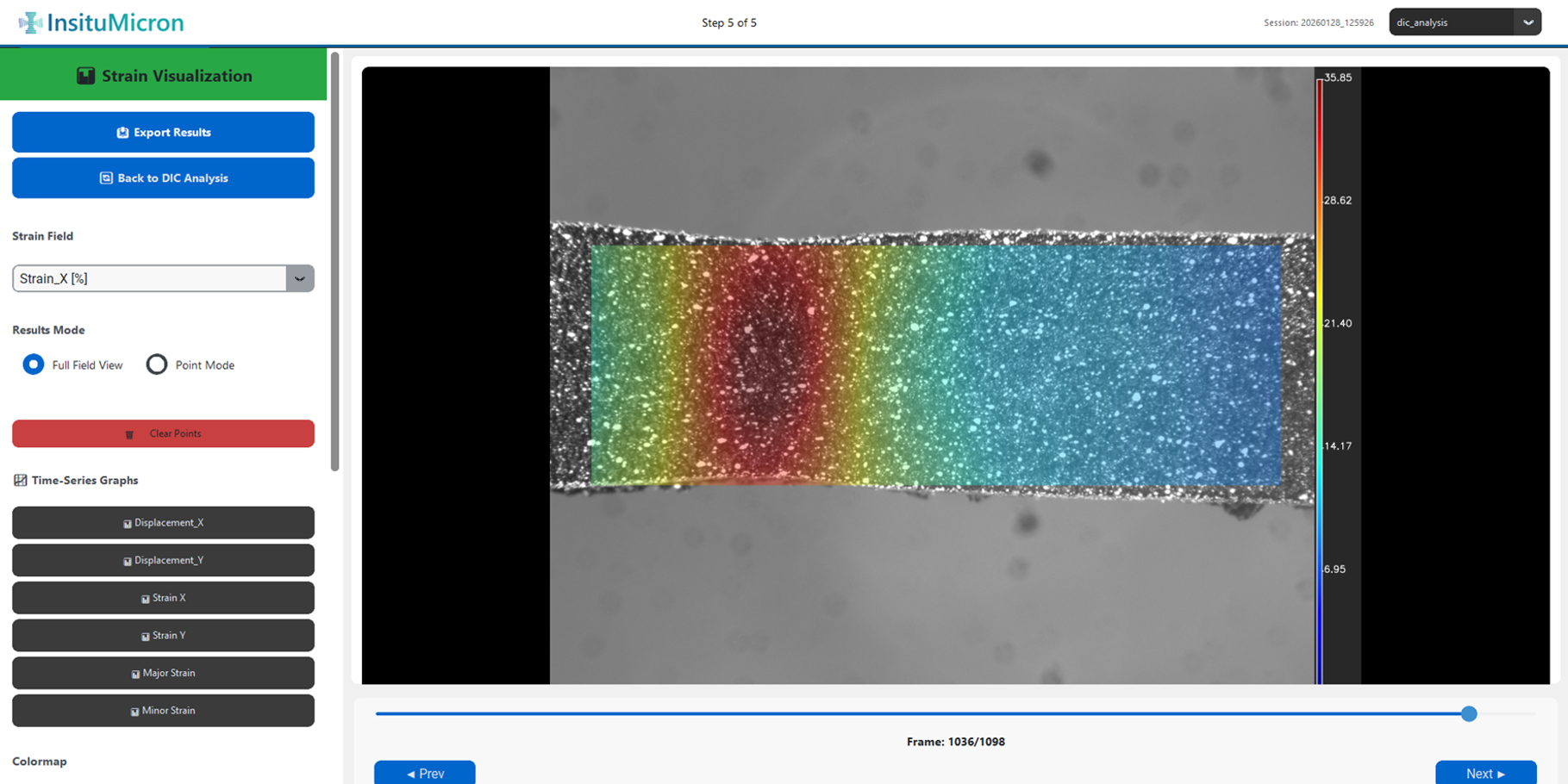

| Analysis Software | In-house developed — purpose-built for DIC analysis workflows |
Full datasheet available on request. Get the PDF or talk to our team directly.

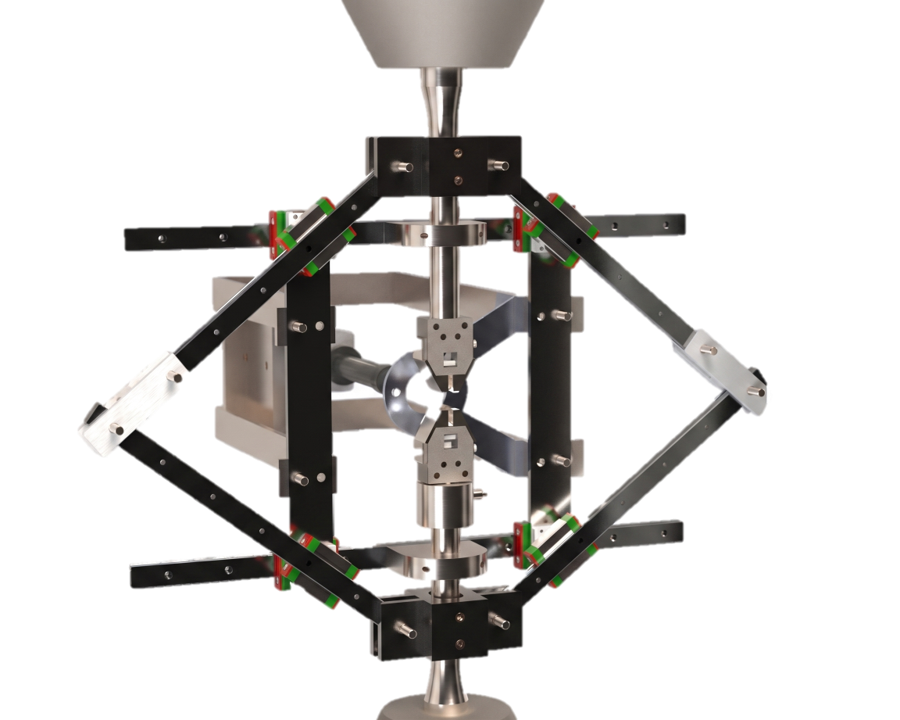

FixIM
A fixture for small-scale testing that converts your existing uniaxial testing system
Compact and lightweight retrofit design
Precision specimen alignment
Supports in-situ imaging and strain measurement
Compatible with:
Universal Testing Machines (UTM) Digital Image Correlation (DIC) SystemsTechnical Specifications
| Compatible Systems | Standard uniaxial tensile/compression machines |
| Maximum Load Capacity | 5 kN |
| Sample Size Range | Sub-millimeter to small coupon specimens |
| Alignment Mechanism | Precision-guided alignment stage |
| Testing Modes | Tension, compression, cyclic loading |
| Optical Access | Open-frame design for microscopy/DIC |
Full datasheet available on request. Get the PDF or talk to our team directly.
Need Something Custom?
Our instruments are designed to be modular. If your application needs a specific load range, fixture geometry, or integration that isn't listed here — we can build it. Tell us what you're trying to measure.
Talk to Our Engineers
